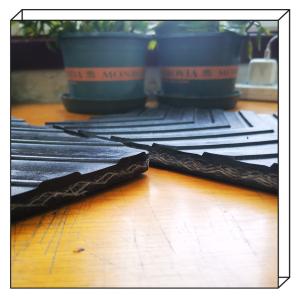

Patterned solid woven conveyor belt is a type of belt made of rubber and fabric with special patterns. They have features like increasing friction, adapting to complex conditions, having good wear and corrosion resistance, diverse patterns, and easy installation and replacement. They are widely in various fields. When choosing, factors like the belt material, pattern type and size, and working environment conditions need to be considered.
Characteristics
1. Good anti-slip performance: increase the friction between the conveyor belt and the material to ensure the stability of the material transportation.
2. Strong wear resistance: can withstand the wear of materials, extend the service life.
3. Various pattern forms: Suitable pattern shapes can be selected according to different needs.
4. Wide range of application: can be for conveying a variety of materials, such as ore, coal, etc.
5. High stability: it can maintain a stable operating state during the conveying process.
6. Adapt to different tilt angles: It can be in a certain slope.
Standard Specifications
| Model | Grade | Tensile strength N/mm | Elongation at break ≥% | Width mm |
| Longitudinal | Transversal | Longitudinal | Transversal | |
| 680S | Grade4 | 680 | 265 | 15 | 18 | 500-2000 |
| 800S | Grade5 | 800 | 280 |
| 1000S | Grade6 | 1000 | 300 |
| 1250S | Grade7 | 1250 | 350 |
| 1400S | Grade8 | 1400 | 350 |
| 1600S | Grade9 | 1600 | 400 |
| 1800S | Grade10 | 1800 | 400 |
| 2000S | Grade11 | 2000 | 400 |
| 2240S | Grade12 | 2240 | 450 |
| 2500S | Grade13 | 2500 | 450 |
Rubber Covers
Mine flame retardant: suitable for underground transportation of flammable and explosive dangerous materials, the average value of the combustion test is not more than 10 seconds, the single value is not more than 15 seconds, but also must pass the roller friction test and roadway propane combustion test.
| Standard | Tensile strength Mpa | Elongation at break % | Abrasion mm³ |
| MT914 | 10 | 350 | 200 |
Applications
- Mining Industry: Widely used in the mining industry, especially in underground mines and mining operations, due to its fire-resistant and flame-retardant properties, providing enhanced safety.
- Chemical Industry: In chemical production processes where conveying of flammable, explosive, or corrosive materials is common, PVG solid woven conveyor belt offer increased safety and reliability.
- Power Generation: Power plants often require the transportation of coal or other fuels, where PVG solid woven conveyor belt ensure safe and reliable conveying processes.
- Ports and Logistics: Used in ports and logistics for handling materials such as coal and ores, where the fire-resistant and flame-retardant properties of PVG solid woven conveyor belt ensure the safety of the conveying process.
- Other Special Environments: Besides the mentioned industries, PVG solid woven conveyor belt is also suitable for special environments such as subways, underground passages, and other locations where fire and explosion prevention are crucial.
Certifications
We passed ISO9001, ISO14001, ISO45001. And our products have repeatedly passed the quality testing in RWE, TUV and BV. In addition, we have passed 46 safety mark certificates of the China Mineral products and have obtained 27 national utility model patents and 3 invention patents.
Perfect Testing Equipment
We have a strong ability to develop new products. The company has an area of 3800 square meters of scientific research building.Four rubber material laboratories have been established, including material testing, formula testing, rubber mixing test and finished product testing, truly realize the strict control testing from raw materials to finished products, to ensure that the quality of products to meet the needs of users.
Cooperative Partner
We are proud to have established long-term partnerships with many outstanding companies. These partners come from different industries, such as mining, manufacturing, logistics and transportation. For example, Ordered by Fenner Dunlop, China Shenhua repeatedly.We are committed to providing customers with efficient and reliable material handling solutions, and through close cooperation, we realize the sharing of resources and complementary advantages, and create greater value for customers.
